SERIES 160700 DN8 à DN50 - from PN10 to PN100 - from -220°C to +200°C
Description
Stainless steel #304L manual globe valve with extended bolted bonnet and butt welding ends in its standard version. The bubble-tight shut-off is ensured through an integral seat and a renewable soft composition disc.
Applications
Designed for use on all air components gases in its standard verion, this valve offers a wide range of options which allows the handling of a large variety of fluids. This valve is extensively used in every kind of industrial projects: air separation plants, petrochemical plants, dangerous products transportation, ...
General features
- the use of a stainless steel cryogenic extension (bonnet and stem) reduces the calorific conduction between the very low temperatured flowing medium and the packing. This ensures perfect tightness of packing in service conditions.
- the sturdy design, the high-quality of the selected materials and the high-performance components of this valve provide to it multi-purpose characteristics.
- this valve does not contain copper or coper alloy in contact with the atmosphere
Alternatives
- Extension length upon demand
- Metallic plug, throttling plug
- Socket-welding ends or flanged ends
- Stainless steel #316L construction
- Construction without copper or copper alloy in contact with the flowing medium
- Fire safe construction
- Reinforced packing gland
- Lockable handwheel
- Actuated valves (fails open / fails closed)
- ... (see codification)

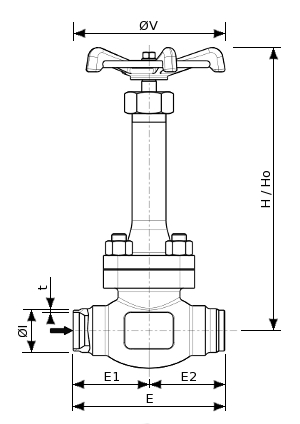

| Dimensions in mm | Weight (W) in kg | ||||||||
| DN1 | PN | Do | E | E1 | E2 | H | Ho | ØV | W |
| 8 | Up to 100 | 15 | 100 | 50 | 50 | 230 | 239 | 80 | 1,8 |
| 12 | Up to 100 | 15 | 100 | 50 | 50 | 230 | 239 | 80 | 1,8 |
| 15 | Up to 100 | 15 | 100 | 50 | 50 | 230 | 239 | 80 | 1,8 |
| 20 | Up to 100 | 25 | 130 | 50 | 80 | 230 | 241 | 125 | 3 |
| 25 | Up to 100 | 25 | 130 | 50 | 80 | 230 | 241 | 125 | 3 |
| 32 | Up to 100 | 32 | 160 | 80 | 80 | 300 | 313 | 125 | 4,9 |
| 40 | Up to 100 | 40 | 180 | 90 | 90 | 350 | 369 | 160 | 6 |
| 50 | Up to 100 | 50 | 210 | 105 | 105 | 400 | 422 | 160 | 11 |
| forged body | |||||||||
| cast body | |||||||||

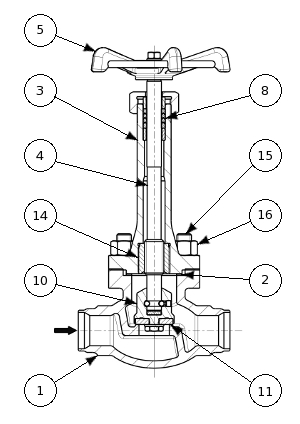

| Standard materials | |||||
| Rep | Designation | Standard materials | |||
| 1 | Body | DN<=DN25 | DN>DN25 | ||
| EN 10222-5 | EN 10222-5 | EN 10213 | EN 10213 | ||
| X2CrNi18-9 1.4307 | X2CrNiMo17-12-2 1.4404 | GX2CrNi19-11 1.4309 | GX2CrNiMo19-11-2 1.4409 | ||
| A182 F304L | A182 F316L | A351 CF3 | A351 CF3M | ||
| 2 | Body gasket | Graphite + 316L | |||
| 3 | Bonet | EN 10222-5 X2CrNi18-9 1.4307 | EN 10222-5 X2CrNiMo17-12-2 1.4404 | ||
| A182 F304L | A182 F316L | ||||
| 4 | Stem | EN 10088-3 X8CrNiS18-9 1.4305 | EN 10088-3 X6CrNiTi18-10 1.4541 | ||
| AISI 303 | A479 Gr. 321 | ||||
| 5 | Handwheel | AS13 Y30 | |||
| 8 | Packing | PTFE (Teflon™) | |||
| 10 | Plug | EN 10088-3 X2CrNiS18-9 1.4305 | EN 10088-3 X2CrNiMo17-12-2 1.4404 | ||
| AISI 303 | A479 Gr. 316L | ||||
| 11 | Composition disc | PTFE (Teflon™) | |||
| 14 | Nut | NF EN 1982 CuSn7Zn4Pb7-C CC493K | |||
| B505 C93200 | |||||
| 15 | Stud | EN 10269 X5CrNiMo17-12-2 1.4401 | |||
| A320 GrB8M | |||||
| 16 | Nut | EN 10269 X5CrNi18-10 1.4301 | |||
| A194 Gr8 | |||||
| for #316L stainless steel construction | |||||
| 1 | 6 | 0 | 7 | 0 | 0 | - | X | X | X | - | 00 | 00 | 00 | - | DN | .. | PN | .. |
|---|
| 1 | 6 | 0 | 7 | 0 | 0 | - | X | X | X | - | 00 | 00 | 00 | - | DN | .. | PN | .. |
|---|
| Value | Plug material |
|---|---|
| 1 | PTFE disc |
| 2 | PCTFE disc |
| 6 | Metal plug (st. st.) |
| 1 | 6 | 0 | 7 | 0 | 0 | - | X | X | X | - | 00 | 00 | 00 | - | DN | .. | PN | .. |
|---|
| Value | End connections |
|---|---|
| 3 | Flanged |
| 4 | Butt welding ends |
| 5 | Socket welding ends |
| 1 | 6 | 0 | 7 | 0 | 0 | - | X | X | X | - | 00 | 00 | 00 | - | DN | .. | PN | .. |
|---|
| Value | Pressure rating |
|---|---|
| 1 | PN16 & class 150 |
| 2 | PN25 |
| 3 | PN 40 & class 300 |
| 4 | PN 64 & class 400 |
| 5 | PN 100 & class 600 |
| 1 | 6 | 0 | 7 | 0 | 0 | - | X | X | X | - | 00 | 00 | 00 | - | DN | .. | PN | .. |
|---|

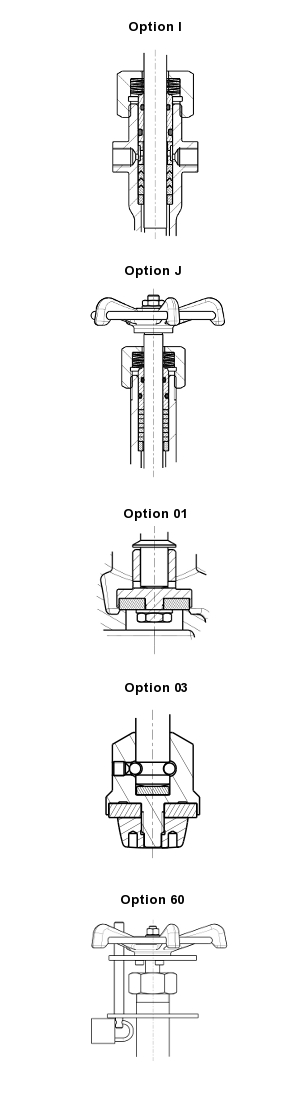

| Value | Option |
|---|---|
| A | Outside screw & yoke |
| E | ATEX CE Ex II 2G/D |
| G | Graphite packing |
| H | Metal body gasket |
| I | Reinforced packing and drain connections |
| J | Reinforced packing |
| 1 | 6 | 0 | 7 | 0 | 0 | - | X | X | X | - | 00 | 00 | 00 | - | DN | .. | PN | .. |
|---|
| Value | Option |
|---|---|
| 01 | Screw down check valve |
| 03 | Throttling plug |
| 17 | Hard faced seat |
| 20 | Without copper and copper alloys in contact with atmosphere |
| 21 | Without copper and copper alloys |
| 22 | Without copper and copper alloys in contact with the flowing medium |
| 23 | With stem bellow seal |
| 25 | Special extended bonnet length |
| 30 | Limit switch open |
| 31 | Limit switch closed |
| 32 | Limit switch open and closed |
| 60 | Handwheel lock up device. |
| 65 | Electrical actuator |
| 67 | Spring return pneumatic actuator (air to close) |
| 68 | Spring return pneumatic actuator (air to open) |
