from DN15 to DN200 - from PN16 (class 150) to PN630 (class 2500) - from -30°C to +120°C
Description

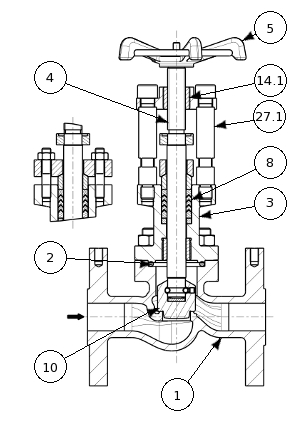

Globe valve with outside screw and yoke. The flanged body and the bolted bonnet are made of copper alloy (#CuSn). The stem and the throttling plug are made of nickel alloy (#Monel™). The plug is designed so as to avoid fire ignition while opening the valve. The integrated seat and a very neat lapping ensure bubble-tight shut-off.
Applications
This range of valves has been specially designed for gaseous oxygen service. These valves can also be installed behind a barrier, with or without gear box. They are extensively used in industry, especially in steel plants.
General features
- Body and bonnet in copper alloy (#CuSn)
- Stem and plug in nickel alloy (#Monel™)
- Outside screw and yoke
- Throttling plug
- Metallic body gasket (Copper)
- Packing gland made of PTFE for PN<PN100 and made of graphite for PN>=PN100

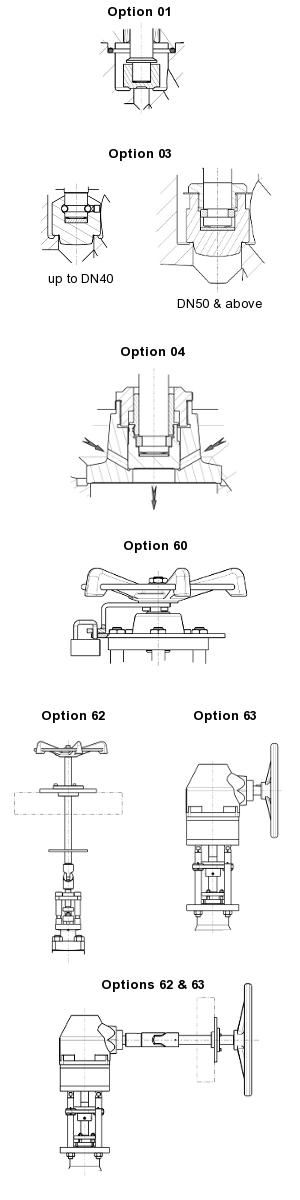

Alternatives
- Gear operated (depending on size and pressure rating)
- Extended stem and remote handwheel for installation behind a barrier
- Body and bonnet made of nickel alloy (Monel or Inconel depending on sizes and pressure ratings) in case of corrosive atmospheres
- For valves installed behind a barrier, body and bonnet made of stainless steel is available and the selection of butt welding ends offer an economic solution
- Threaded ends (BS or NPT) and socket welding ends on request
- … (see codification)
